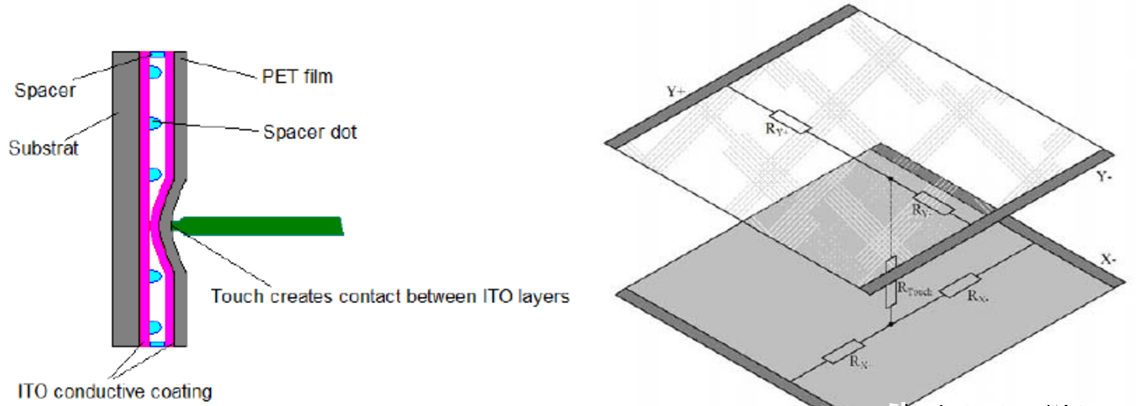

一，電阻觸摸屏工作原理

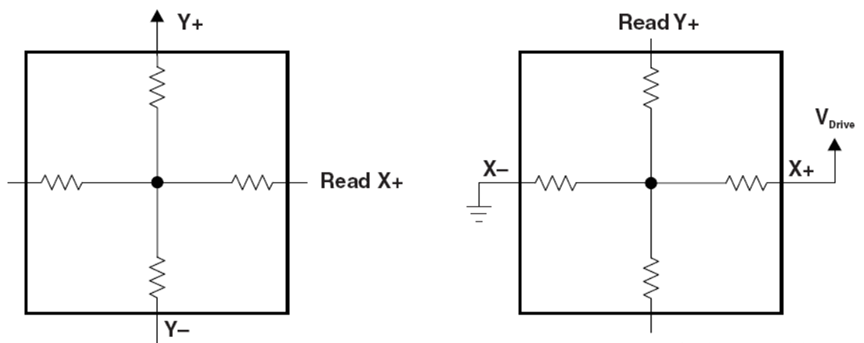

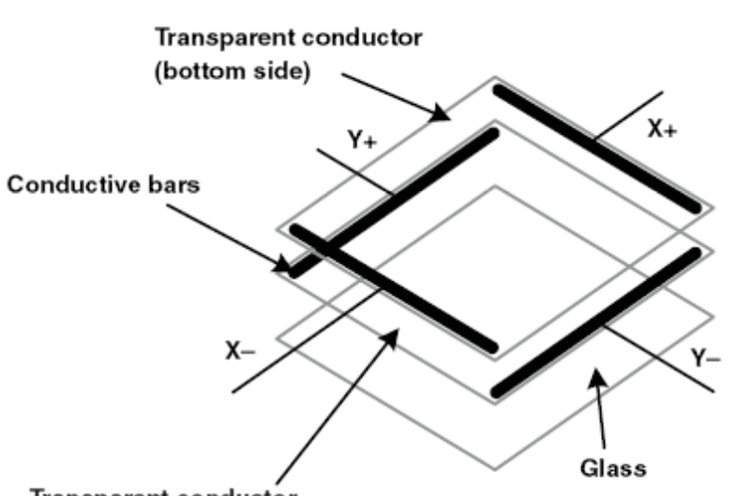

1. 原理圖

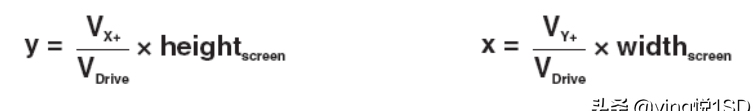

2.坐標計算方法

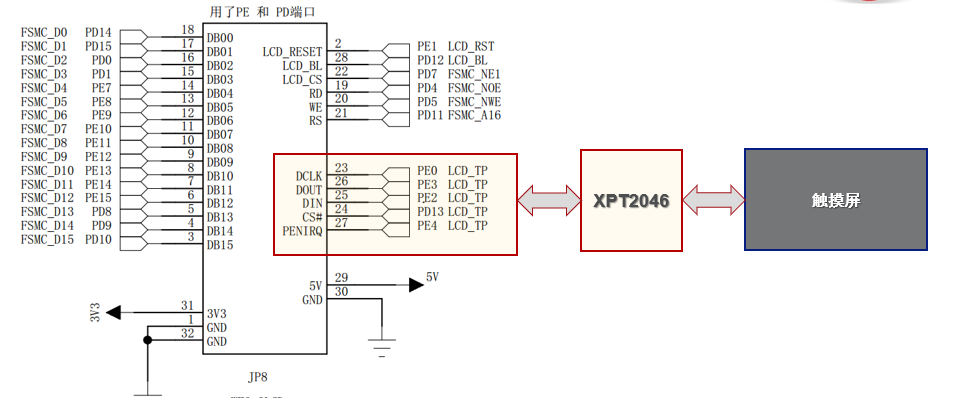

3.觸屏接口

4.觸屏驅動程序

5.使用觸屏驅動——bsp_lcd.h

6.bsp_xpt2046_lcd.h解析

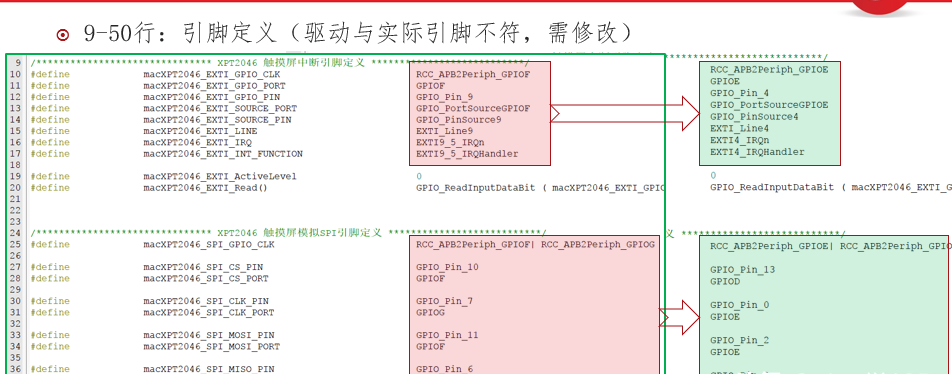

¤54行：定義XPT2046觸摸屏的坐標掃描方向

//1：豎屏 2：橫屏，根據實際情況自行修改，與屏幕顯示方向保持一致

#define macXPT2046_Coordinate_GramScan 2

¤98行：定義全局變量

//觸摸標志：按下為1(按下申請外部中斷，在中斷服務程序中設置)，釋放清零

extern volatile uint8_t ucXPT2046_TouchFlag;

//校準系數，具體數據在bsp_xpt2046_lcd.c中，根據屏幕顯示方向選擇

extern strType_XPT2046_TouchPara strXPT2046_TouchPara;

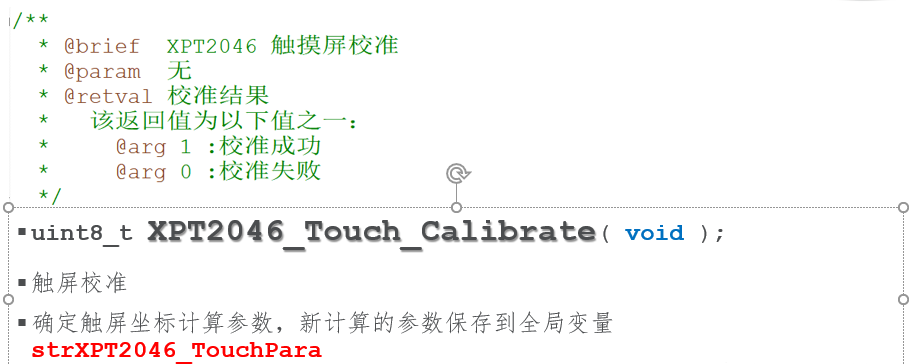

7.驅動函數介紹

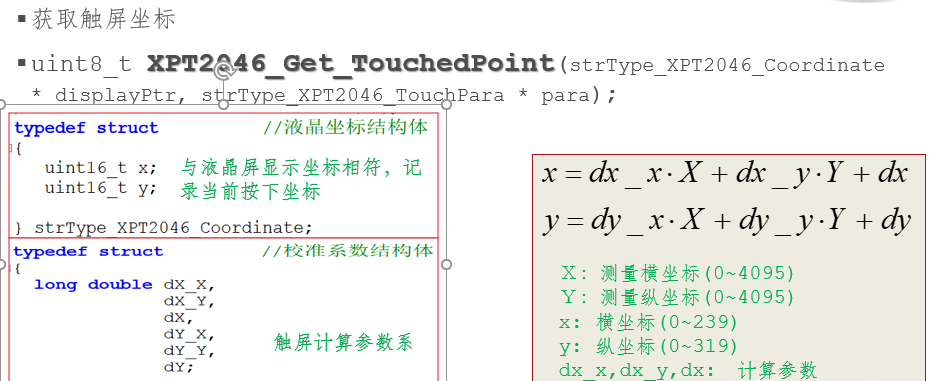

¤void XPT2046_Init( void );

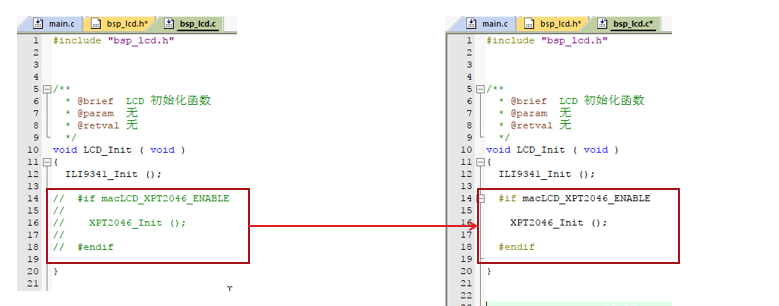

¤在LCD_Init()函數中調用

¤配置SPI接口CS,MISO,MOSI,CLK引腳工作模式

¤配置觸屏輸入中斷

下降沿觸發，允許中斷，優先級0,0

8.設計觸屏中斷服務程序

// EXTI Line --> PE4
void macXPT2046_EXTI_INT_FUNCTION ( void )
{
if ( EXTI_GetITStatus ( macXPT2046_EXTI_LINE ) != RESET )
{
 ucXPT2046_TouchFlag = 1;
 EXTI_ClearITPendingBit ( macXPT2046_EXTI_LINE );
}
}

9.驅動函數介紹

舉例

10.驅動函數介紹

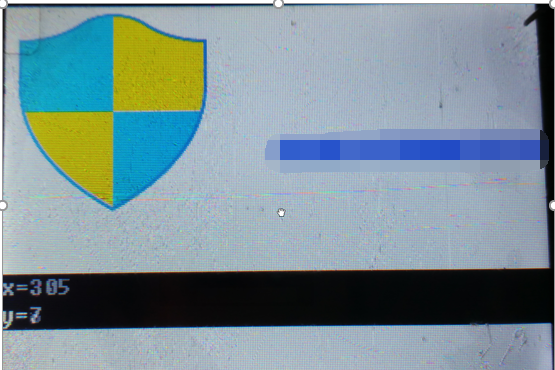

11.執行效果

11.屏幕方向設置

¤1) bsp_lcd.c
 ILI9341_Init ();
 ILI9341_GramScan(1);
¤2) bsp_xpt2046_lcd.h
 #define macXPT2046_Coordinate_GramScan 1
¤3) bsp_xpt2046_lcd.c
 strType_XPT2046_TouchPara strXPT2046_TouchPara = {
0.001030, 0.064188, -10.804098, -0.085584, 0.001420, 324.127036
 };
¤4) bsp_ili9341_lcd.h
 #define macILI9341_Default_Max_Width 240 //最大寬度
 #define macILI9341_Default_Max_Heigth 320 //最大高度
 #define macILI9341_DispWindow_COLUMN 240 //總列數
 #define macILI9341_DispWindow_PAGE 320 //總行數

12.程序設計技巧—條件編譯

 #define ScreenDirection 1

 //定義校準系數
 #if ScreenDirection==1
 strType_XPT2046_TouchPara strXPT2046_TouchPara = {
 0.001030, 0.064188, -10.804098, -0.085584, 0.001420, 324.127036
 };
 #elif ScreenDirection==2
 strType_XPT2046_TouchPara strXPT2046_TouchPara = {
 0.085958, -0.001073, -4.979353, -0.001750, 0.065168, -13.318824
 };
#endif

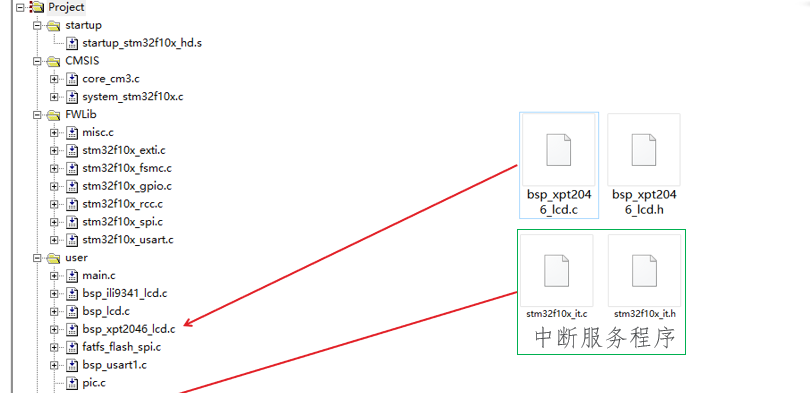

二，總工程

#include "stm32f10x.h"
#include "bsp_lcd.h"
#include "fatfs_flash_spi.h"
#include "bsp_usart1.h"
#include "pic.h"
#include <stdio.h>
#define LEDBLUE_ON		GPIO_ResetBits(GPIOB, GPIO_Pin_1)
#define LEDBLUE_OFF		GPIO_SetBits(GPIOB, GPIO_Pin_1)
#define LEDGREEN_ON		GPIO_ResetBits(GPIOB, GPIO_Pin_0)
#define LEDGREEN_OFF	GPIO_SetBits(GPIOB, GPIO_Pin_0)
#define LEDRED_ON			GPIO_ResetBits(GPIOB, GPIO_Pin_5)
#define LEDRED_OFF		GPIO_SetBits(GPIOB, GPIO_Pin_5)
void Delay(u32 Cnt)
{
	while(--Cnt);
}
void GPIO_Configration()
{
	GPIO_InitTypeDef GPIO_InitStructure;

	//必須先開啟時鐘再配置引腳
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA | RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOC ,ENABLE);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0|GPIO_Pin_1|GPIO_Pin_5;
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
	GPIO_Init(GPIOB, &GPIO_InitStructure);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
	GPIO_Init(GPIOA, &GPIO_InitStructure);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_13;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
	GPIO_Init(GPIOC, &GPIO_InitStructure);

	LEDBLUE_OFF;LEDGREEN_OFF;LEDRED_OFF;
}
u8 KeyScan()
{
	u8 key;

	if((GPIO_ReadInputDataBit(GPIOA,GPIO_Pin_0)==1) && (GPIO_ReadInputDataBit(GPIOC,GPIO_Pin_13)==1)) key = 3;
	else if((GPIO_ReadInputDataBit(GPIOA,GPIO_Pin_0)==0) && (GPIO_ReadInputDataBit(GPIOC,GPIO_Pin_13)==1)) key = 2;
	else if((GPIO_ReadInputDataBit(GPIOA,GPIO_Pin_0)==1) && (GPIO_ReadInputDataBit(GPIOC,GPIO_Pin_13)==0)) key = 1;
	else key = 0;
	return key;
}
int main(void)
{
	strType_XPT2046_Coordinate Coordinate;
	char	cStr[ 10 ];

	GPIO_Configration();
// 	USARTx_Config();
	LCD_Init();
	ILI9341_GramScan(2);
	FLASH_SPI_initialize();

	LEDRED_ON;

	ILI9341_Clear(0,0,320,240,macWHITE);

	//調用函數繪制圖案，顯示字符
// 	ILI9341_OpenWindow(100,100,50,50);
// 	ILI9341_Write_Cmd ( macCMD_SetPixel );
// 	for(i=0;i<120;i++) ILI9341_Write_Data ( macRED );
// 	ILI9341_DispString_EN_CH(0,200,"頭條你好",macBLUE,macWHITE);
	ILI9341_DispImage( 0,0,gImage_1 );
	ILI9341_DispString_EN_CH(160,80,"頭條你好",macBLUE,macWHITE);
	while(1)
	{

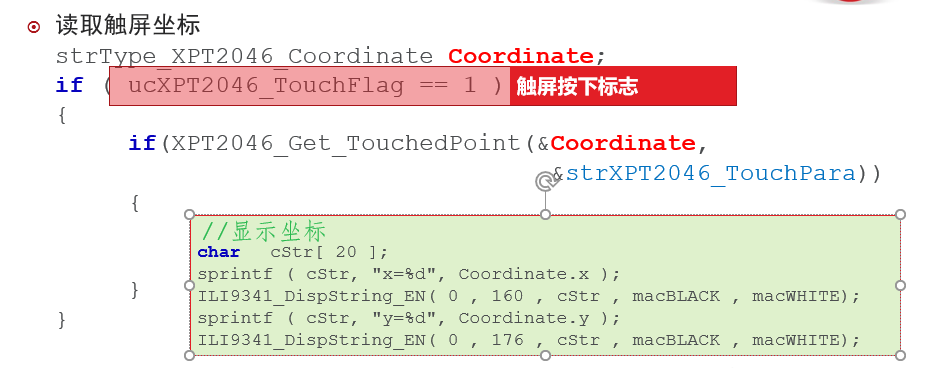

		if ( ucXPT2046_TouchFlag == 1 )			 //如果觸摸了屏幕
 {
 if ( XPT2046_Get_TouchedPoint ( & Coordinate, & strXPT2046_TouchPara ) ) //獲取觸摸點的坐標
			{

				ILI9341_Clear( 0 , 160 , 320 , 32 , macBLACK );
				sprintf ( cStr, "%d", Coordinate.x );
				ILI9341_DispString_EN( 0 , 160 , "x=" , macBLACK , macWHITE);
				ILI9341_DispString_EN( 16 , 160 , cStr , macBLACK , macWHITE);
				sprintf ( cStr, "%d", Coordinate.y );
				ILI9341_DispString_EN( 0 , 176 , "y=" , macBLACK , macWHITE);
				ILI9341_DispString_EN( 16 , 176 , cStr , macBLACK , macWHITE);
			}
 }
	}
}
